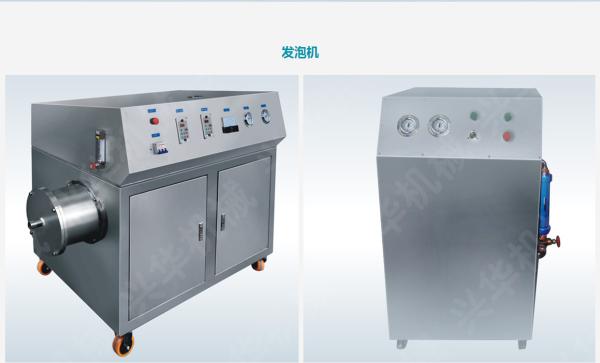

PLC Tracking Coating Latex Foaming Machine Hand Adjustable 5.5 KW Total Power

Applications:

This machine model is designed for the dry rubber foaming process of fluid PU synthetic leather as a replacement of the wet process to change the complicated manufacturing process, resulting in lower costs, environmental-friendliness, energy efficiency and optimal porosity of end products. It is also designed for carpet and artificial fur backing operation, curtain cloth foaming/coating operation and foaming operation of latex, rubber and cosmetics and more.

Specifications:

1) Foaming rubber dosage:0.3-1.5m/h (0.3-2t Adjusted by hand or auto PLC tracking coating speed)

2) Foaming head temp.:≤40℃

3) Applicable ambient temp.:-10-35℃

4) Atmospheric Pressure Range:Above sea level 0-2500m

5) Ratio between throughput/ air:20℃-80℃

6) Applicable glue viscosity:1000-60000cps

7) Feeding mode:Shaft pumps or hose pumps

8) Total power:5.5KW(Standard set-up mode)

9) Installation way:Movable trolley type

10) Overall dimension:LⅹWⅹH 1600ⅹ650ⅹ1350mm

11) Overall weight:400kg

Competitive Advantage:

1) International standard.

2) Applicable the dry rubber foaming process of fluid PU synthetic leather.

3) It is also designed for carpet and artificial fur backing operation, curtain cloth foaming/coating operation and foaming operation of latex, rubber and cosmetics and more.

4) This machine can reduce your costs and improve production efficiency.
